2004-2015 FORD 4.6L/5.4L 3V TIMING CHAIN LOCKING TOOL
2004-2015 FORD 4.6L/5.4L 3V TIMING CHAIN LOCKING TOOL
2004-2015 FORD 4.6L/5.4L 3V TIMING CHAIN LOCKING TOOL
2004-2015 FORD 4.6L/5.4L 3V TIMING CHAIN LOCKING TOOL
2004-2015 FORD 4.6L/5.4L 3V TIMING CHAIN LOCKING TOOL
2004-2015 FORD 4.6L/5.4L 3V TIMING CHAIN LOCKING TOOL
2004-2015 FORD 4.6L/5.4L 3V TIMING CHAIN LOCKING TOOL
2004-2015 FORD 4.6L/5.4L 3V TIMING CHAIN LOCKING TOOL
2004-2015 FORD 4.6L/5.4L 3V TIMING CHAIN LOCKING TOOL
2004-2015 FORD 4.6L/5.4L 3V TIMING CHAIN LOCKING TOOL

2004-2015 FORD 4.6L/5.4L 3V TIMING CHAIN LOCKING TOOL

$84.99
#LPP823120
quantity:

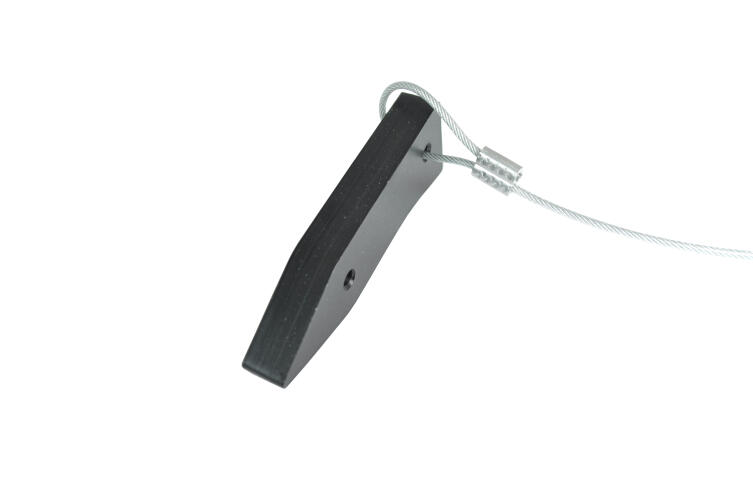

This wedge tool allows for locking of the timing chains on a Ford Modular 3V engine without having to remove the front cover. This tool only requires the removal of the valve covers. Once the valve covers are removed the tool can be fit into position between the chains and then a long screwdriver can be used to force the tool into a tight wedged position between the chains. This allows removal of the camshaft and gear without removing the front dress or front cover from the engine.

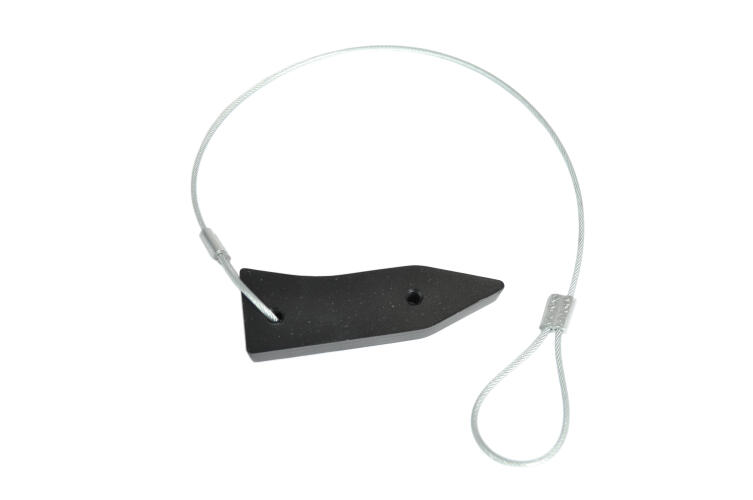

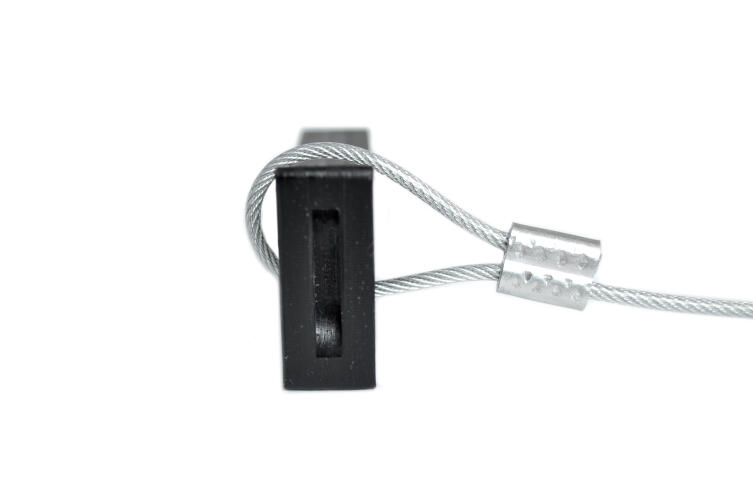

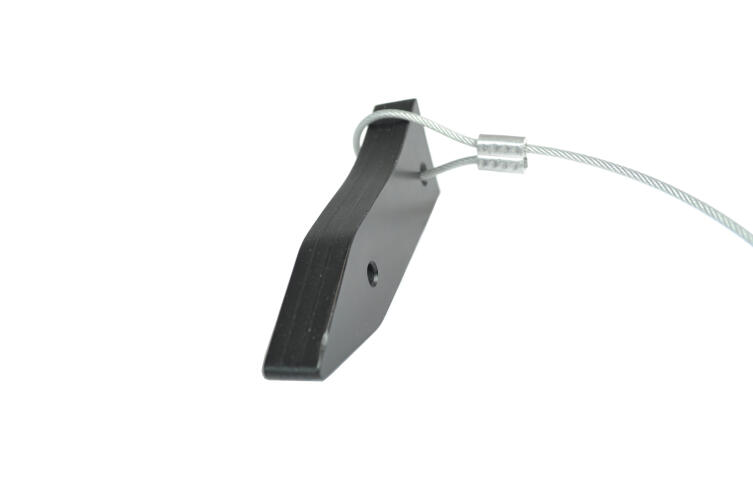

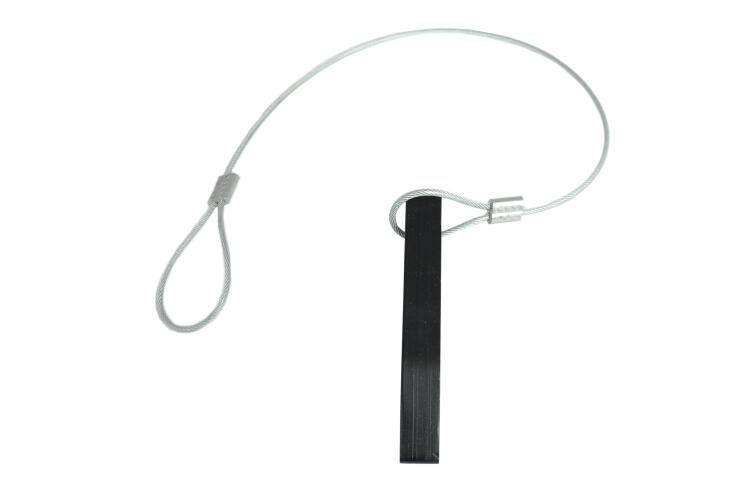

 The tool has a small notch cut into the top of it to allow a screwdriver to be used to push the piece into place. The tool has two sides, one flat (which goes up against the fixed guide) and one with a profile to it (which goes up against the pivoting guide). The shape of the tool prevents it from being pushed all the way through the chains. When pushing the tool into place use enough pressure so that the tool will not pull out easily with the pull cord. The pull cord is left hanging out of the top of the engine and once everything is back in place you just give it a pull and the wedge will come out.

About Livernois Motorsports

Livernois Motorsports & Engineering has become best-known for revolutionary tuning and high-end performance products for late model Ford, Mopar and GM vehicles. The company is proud of its deep roots in the automotive and motorsports industry dating back to its original founding in 1949. Since then the company has expanded its product line to include tuning and performance components for desert racing, SCCA and drag racing. Livernois Motorsports is proud to engineer, test and manufacture its products in the USA.

This wedge tool allows for locking of the timing chains on a Ford Modular 3V engine without having to remove the front cover. This tool only requires the removal of the valve covers. Once the valve covers are removed the tool can be fit into position between the chains.

    • 2005-2010 Ford Expedition Eddie Bauer 5.4 Liter Naturally Aspirated
    • 2007-2010 Ford Expedition EL Eddie Bauer 5.4 Liter Naturally Aspirated
    • 2008-2014 Ford Expedition EL King Ranch 5.4 Liter Naturally Aspirated
    • 2007-2014 Ford Expedition EL Limited 5.4 Liter Naturally Aspirated
    • 2011-2014 Ford Expedition EL XL 5.4 Liter Naturally Aspirated
    • 2007-2014 Ford Expedition EL XLT 5.4 Liter Naturally Aspirated
    • 2008 Ford Expedition Funkmaster Flex Edition 5.4 Liter Naturally Aspirated
    • 2006 Ford Expedition King Ranch 5.4 Liter Naturally Aspirated
    • 2008-2014 Ford Expedition King Ranch 5.4 Liter Naturally Aspirated
    • 2005-2014 Ford Expedition Limited 5.4 Liter Naturally Aspirated
    • 2011-2014 Ford Expedition XL 5.4 Liter Naturally Aspirated
    • 2005-2006 Ford Expedition XLS 5.4 Liter Naturally Aspirated
    • 2005-2014 Ford Expedition XLT 5.4 Liter Naturally Aspirated
    • 2006 Ford Expedition XLT Sport 5.4 Liter Naturally Aspirated
    • 2007-2010 Ford Explorer Sport Trac Limited 4.6 Liter
    • 2007-2010 Ford Explorer Sport Trac XLT 4.6 Liter
    • 2008 Ford F-150 FX2 4.6 Liter Naturally Aspirated
    • 2010 Ford F-150 FX2 4.6 Liter Naturally Aspirated
    • 2007-2008 Ford F-150 FX2 5.4 Liter Naturally Aspirated
    • 2010 Ford F-150 FX2 5.4 Liter Naturally Aspirated
    • 2004-2010 Ford F-150 FX4 5.4 Liter Naturally Aspirated
    • 2006-2008 Ford F-150 Harley-Davidson Edition 5.4 Liter Naturally Aspirated
    • 2010 Ford F-150 Harley-Davidson Edition 5.4 Liter Naturally Aspirated
    • 2005-2010 Ford F-150 King Ranch 5.4 Liter Naturally Aspirated
    • 2004-2010 Ford F-150 Lariat 5.4 Liter Naturally Aspirated
    • 2008 Ford F-150 Limited 5.4 Liter Naturally Aspirated
    • 2009-2010 Ford F-150 Platinum 5.4 Liter Naturally Aspirated
    • 2004-2010 Ford F-150 STX 4.6 Liter Naturally Aspirated
    • 2010 Ford F-150 SVT Raptor 5.4 Liter Naturally Aspirated
    • 2008 Ford F-150 THE 60TH ANNIVERSARY EDITION 4.6 Liter Naturally Aspirated
    • 2008 Ford F-150 THE 60TH ANNIVERSARY EDITION 5.4 Liter Naturally Aspirated
    • 2004-2010 Ford F-150 XL 4.6 Liter Naturally Aspirated
    • 2004-2010 Ford F-150 XL 5.4 Liter Naturally Aspirated
    • 2004-2010 Ford F-150 XLT 4.6 Liter Naturally Aspirated
    • 2004-2010 Ford F-150 XLT 5.4 Liter Naturally Aspirated
    • 2009-2010 Ford F-250 Super Duty Cabela's 5.4 Liter Naturally Aspirated
    • 2008-2009 Ford F-250 Super Duty FX4 5.4 Liter Naturally Aspirated
    • 2005-2010 Ford F-250 Super Duty King Ranch 5.4 Liter Naturally Aspirated
    • 2005-2010 Ford F-250 Super Duty Lariat 5.4 Liter Naturally Aspirated
    • 2005-2010 Ford F-250 Super Duty XL 5.4 Liter Naturally Aspirated
    • 2005-2010 Ford F-250 Super Duty XLT 5.4 Liter Naturally Aspirated
    • 2009-2010 Ford F-350 Super Duty Cabela's 5.4 Liter Naturally Aspirated
    • 2008-2009 Ford F-350 Super Duty FX4 5.4 Liter Naturally Aspirated
    • 2005-2010 Ford F-350 Super Duty King Ranch 5.4 Liter Naturally Aspirated
    • 2005-2010 Ford F-350 Super Duty Lariat 5.4 Liter Naturally Aspirated
    • 2005-2010 Ford F-350 Super Duty XL 5.4 Liter Naturally Aspirated
    • 2005-2010 Ford F-350 Super Duty XLT 5.4 Liter Naturally Aspirated
    • 2008-2009 Ford Mustang Bullitt 4.6 Liter Naturally Aspirated
    • 2005-2010 Ford Mustang GT 4.6 Liter Naturally Aspirated
    • 2007-2008 Ford Mustang Shelby GT 4.6 Liter Naturally Aspirated
    • 2006-2008 Lincoln Mark LT Base 5.4 Liter Naturally Aspirated
    • 2005 Lincoln Navigator Base 5.4 Liter Naturally Aspirated
    • 2008-2014 Lincoln Navigator Base 5.4 Liter Naturally Aspirated
    • 2008-2014 Lincoln Navigator L 5.4 Liter Naturally Aspirated
    • 2007 Lincoln Navigator L Luxury 5.4 Liter Naturally Aspirated
    • 2007 Lincoln Navigator L Ultimate 5.4 Liter Naturally Aspirated
    • 2006-2007 Lincoln Navigator Luxury 5.4 Liter Naturally Aspirated
    • 2006-2007 Lincoln Navigator Ultimate 5.4 Liter Naturally Aspirated
