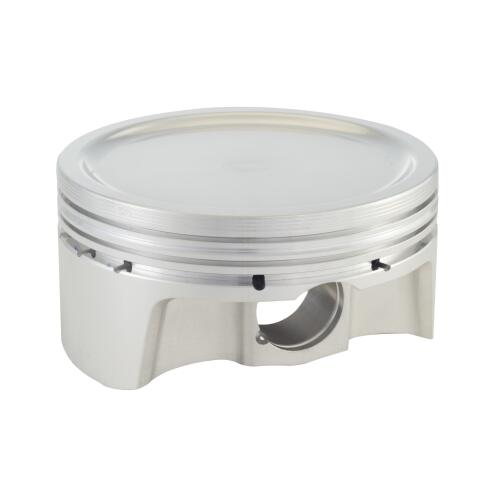

CP-CARRILLO LS 3.622 STROKE 4.005 BORE .927 PIN FLAT TOP PISTONS 10.1:1 (64CC) 9.5:1 (70CC)
CP Pistons Bullet Series piston and ring kits are value-packed replacements. Offered at an affordable price, these high-quality pistons incorporate everything that has made CP an industry leader—extensive research, computer-designed forgings, tight tolerances, and rigorous quality control. Having Bullet Series pistons means you no longer have to compromise high performance, even on a tight budget. They're manufactured from 2618 forged aluminum alloy for strength and durability.
Additional features include:
* Piston balance 1 gram
* Dual forced pin oilers
* Contact reduction grooves
* Accumulator groove
* Contemporary high performance ring sets
* Forged side relief
* Chromoly wrist pins with wire locks
About Livernois Motorsports
Livernois Motorsports & Engineering has become best-known for revolutionary tuning and high-end performance products for late model Ford, Mopar and GM vehicles. The company is proud of its deep roots in the automotive and motorsports industry dating back to its original founding in 1949. Since then the company has expanded its product line to include tuning and performance components for desert racing, SCCA and drag racing. Livernois Motorsports is proud to engineer, test and manufacture its products in the USA.
Carrillo Piston Features:
- Double Pin Oilers (opposed to single pin oilers), in conjunction with our annular reservoir, can add twice the amount of oil fromthe cylinder wall to the wristpin bore. This is a standard option on any piston that receives forced pin oiling.
- Lateral gas ports are horizontal slots in the top of the top ring groove and they provide a passage for combustion pressure to get behind and above the top ring, increasing ring seal with reduced radial
rings. Lateral gasports are often used over the vertical option when carbon build up (which could clog vertical gasports) may be an issue. - Vertical holes from the deck of the piston to the back of the top ring groove which allow combustion pressure to directly enter the top ring groove area for maximum ring seal. When not under load, the ring has
normal tension for reduced friction.These are most commonly used for drag race applications. - Broaches are horizontal slots in the pin bore designed to allow oil to enter between the wristpin and pinbore. Broaches are also used to accommodate the wristpin shape under compression, as it can be come somewhat oval and needs room in order to alleviate galling.
- 2006-2007 Cadillac CTS V 6.0 Liter Naturally Aspirated
- 2002-2006 Cadillac Escalade Base 6.0 Liter Naturally Aspirated
- 2009-2013 Cadillac Escalade Hybrid 6.0 Liter Naturally Aspirated
- 2010-2013 Cadillac Escalade Hybrid Platinum 6.0 Liter Naturally Aspirated
- 2003-2006 Cadillac Escalade ESV Base 6.0 Liter Naturally Aspirated
- 2002-2006 Cadillac Escalade EXT Base 6.0 Liter Naturally Aspirated
- 2007-2009 Chevrolet Avalanche LT 6.0 Liter Naturally Aspirated
- 2007-2009 Chevrolet Avalanche LTZ 6.0 Liter Naturally Aspirated
- 2011-2017 Chevrolet Caprice PPV 6.0 Liter Naturally Aspirated
- 2005-2007 Chevrolet Corvette Base 6.0 Liter Naturally Aspirated
- 2003-2020 Chevrolet Express 2500 Base 6.0 Liter Naturally Aspirated
- 2003-2020 Chevrolet Express 2500 LS 6.0 Liter Naturally Aspirated
- 2006-2020 Chevrolet Express 2500 LT 6.0 Liter Naturally Aspirated
- 2003-2020 Chevrolet Express 3500 Base 6.0 Liter Naturally Aspirated
- 2003-2020 Chevrolet Express 3500 LS 6.0 Liter Naturally Aspirated
- 2006-2020 Chevrolet Express 3500 LT 6.0 Liter Naturally Aspirated
- 2016-2018 Chevrolet LCF 3500 Base 6.0 Liter Naturally Aspirated
- 2009-2013 Chevrolet Silverado 1500 Hybrid 6.0 Liter Naturally Aspirated
- 2004-2005 Chevrolet Silverado 1500 LS 6.0 Liter Naturally Aspirated
- 2004-2009 Chevrolet Silverado 1500 LT 6.0 Liter Naturally Aspirated
- 2007-2009 Chevrolet Silverado 1500 LTZ 6.0 Liter Naturally Aspirated
- 2003-2006 Chevrolet Silverado 1500 SS 6.0 Liter Naturally Aspirated
- 2007 Chevrolet Silverado 1500 Classic LT 6.0 Liter Naturally Aspirated
- 2007 Chevrolet Silverado 1500 Classic SS 6.0 Liter Naturally Aspirated
- 2005 Chevrolet Silverado 1500 HD Base 6.0 Liter Naturally Aspirated
- 2001-2003 Chevrolet Silverado 1500 HD LS 6.0 Liter Naturally Aspirated
- 2005 Chevrolet Silverado 1500 HD LS 6.0 Liter Naturally Aspirated
- 2001-2003 Chevrolet Silverado 1500 HD LT 6.0 Liter Naturally Aspirated
- 2005-2006 Chevrolet Silverado 1500 HD LT 6.0 Liter Naturally Aspirated
- 2007 Chevrolet Silverado 1500 HD Classic LT 6.0 Liter Naturally Aspirated
- 1999-2004 Chevrolet Silverado 2500 Base 6.0 Liter Naturally Aspirated
- 1999-2004 Chevrolet Silverado 2500 LS 6.0 Liter Naturally Aspirated
- 1999-2004 Chevrolet Silverado 2500 LT 6.0 Liter Naturally Aspirated
- 2004 Chevrolet Silverado 2500 WT 6.0 Liter Naturally Aspirated
- 2001-2005 Chevrolet Silverado 2500 HD Base 6.0 Liter Naturally Aspirated
- 2015-2019 Chevrolet Silverado 2500 HD High Country 6.0 Liter Naturally Aspirated
- 2001-2006 Chevrolet Silverado 2500 HD LS 6.0 Liter Naturally Aspirated
- 2001-2019 Chevrolet Silverado 2500 HD LT 6.0 Liter Naturally Aspirated
- 2007-2019 Chevrolet Silverado 2500 HD LTZ 6.0 Liter Naturally Aspirated
- 2003-2019 Chevrolet Silverado 2500 HD WT 6.0 Liter Naturally Aspirated
- 2007 Chevrolet Silverado 2500 HD Classic LS 6.0 Liter Naturally Aspirated
- 2007 Chevrolet Silverado 2500 HD Classic LT 6.0 Liter Naturally Aspirated
- 2007 Chevrolet Silverado 2500 HD Classic WT 6.0 Liter Naturally Aspirated
- 2001-2005 Chevrolet Silverado 3500 Base 6.0 Liter Naturally Aspirated
- 2001-2006 Chevrolet Silverado 3500 LS 6.0 Liter Naturally Aspirated
- 2001-2006 Chevrolet Silverado 3500 LT 6.0 Liter Naturally Aspirated
- 2004 Chevrolet Silverado 3500 WT 6.0 Liter Naturally Aspirated
- 2006 Chevrolet Silverado 3500 WT 6.0 Liter Naturally Aspirated
- 2007 Chevrolet Silverado 3500 Classic LS 6.0 Liter Naturally Aspirated
- 2007 Chevrolet Silverado 3500 Classic LT 6.0 Liter Naturally Aspirated
- 2007 Chevrolet Silverado 3500 Classic WT 6.0 Liter Naturally Aspirated
- 2015-2019 Chevrolet Silverado 3500 HD High Country 6.0 Liter Naturally Aspirated
- 2007-2019 Chevrolet Silverado 3500 HD LT 6.0 Liter Naturally Aspirated
- 2007-2019 Chevrolet Silverado 3500 HD LTZ 6.0 Liter Naturally Aspirated
- 2007-2019 Chevrolet Silverado 3500 HD WT 6.0 Liter Naturally Aspirated
- 2005-2006 Chevrolet SSR Base 6.0 Liter Naturally Aspirated
- 2007-2009 Chevrolet Suburban 1500 LT 6.0 Liter Naturally Aspirated
- 2006-2009 Chevrolet Suburban 1500 LTZ 6.0 Liter Naturally Aspirated
- 2000-2001 Chevrolet Suburban 2500 Base 6.0 Liter Naturally Aspirated
- 2000-2013 Chevrolet Suburban 2500 LS 6.0 Liter Naturally Aspirated
- 2000-2013 Chevrolet Suburban 2500 LT 6.0 Liter Naturally Aspirated
- 2007 Chevrolet Suburban 2500 LTZ 6.0 Liter Naturally Aspirated
- 2016-2019 Chevrolet Suburban 3500 HD LS 6.0 Liter Naturally Aspirated
- 2016-2019 Chevrolet Suburban 3500 HD LT 6.0 Liter Naturally Aspirated
- 2008-2013 Chevrolet Tahoe Hybrid 6.0 Liter Naturally Aspirated
- 2006-2009 Chevrolet Trailblazer SS 6.0 Liter Naturally Aspirated
- 2003-2020 GMC Savana 2500 Base 6.0 Liter Naturally Aspirated
- 2007-2020 GMC Savana 2500 LS 6.0 Liter Naturally Aspirated
- 2007-2020 GMC Savana 2500 LT 6.0 Liter Naturally Aspirated
- 2003-2005 GMC Savana 2500 SLE 6.0 Liter Naturally Aspirated
- 2003-2020 GMC Savana 3500 Base 6.0 Liter Naturally Aspirated
- 2006-2020 GMC Savana 3500 LS 6.0 Liter Naturally Aspirated
- 2006-2020 GMC Savana 3500 LT 6.0 Liter Naturally Aspirated
- 2003-2005 GMC Savana 3500 SLE 6.0 Liter Naturally Aspirated
- 2004 GMC Sierra 1500 Base 6.0 Liter Naturally Aspirated
- 2001 GMC Sierra 1500 C3 6.0 Liter Naturally Aspirated
- 2002-2006 GMC Sierra 1500 Denali 6.0 Liter Naturally Aspirated
- 2009-2013 GMC Sierra 1500 Hybrid 6.0 Liter Naturally Aspirated
- 2004-2009 GMC Sierra 1500 SLE 6.0 Liter Naturally Aspirated
- 2004-2009 GMC Sierra 1500 SLT 6.0 Liter Naturally Aspirated
- 2004 GMC Sierra 1500 WT 6.0 Liter Naturally Aspirated
- 2007 GMC Sierra 1500 Classic Denali 6.0 Liter Naturally Aspirated
- 2007 GMC Sierra 1500 Classic SLE 6.0 Liter Naturally Aspirated
- 2007 GMC Sierra 1500 Classic SLT 6.0 Liter Naturally Aspirated
- 2001-2003 GMC Sierra 1500 HD SLE 6.0 Liter Naturally Aspirated
- 2005-2006 GMC Sierra 1500 HD SLE 6.0 Liter Naturally Aspirated
- 2001-2003 GMC Sierra 1500 HD SLT 6.0 Liter Naturally Aspirated
- 2005-2006 GMC Sierra 1500 HD SLT 6.0 Liter Naturally Aspirated
- 2007 GMC Sierra 1500 HD Classic SLE 6.0 Liter Naturally Aspirated
- 2007 GMC Sierra 1500 HD Classic SLT 6.0 Liter Naturally Aspirated
- 2002-2004 GMC Sierra 2500 Base 6.0 Liter Naturally Aspirated
- 1999-2002 GMC Sierra 2500 SL 6.0 Liter Naturally Aspirated
- 1999-2004 GMC Sierra 2500 SLE 6.0 Liter Naturally Aspirated
- 1999-2004 GMC Sierra 2500 SLT 6.0 Liter Naturally Aspirated
- 2003-2004 GMC Sierra 2500 WT 6.0 Liter Naturally Aspirated
- 2002-2005 GMC Sierra 2500 HD Base 6.0 Liter Naturally Aspirated
- 2015-2019 GMC Sierra 2500 HD Base 6.0 Liter Naturally Aspirated
- 2011-2019 GMC Sierra 2500 HD Denali 6.0 Liter Naturally Aspirated
- 2001-2002 GMC Sierra 2500 HD SL 6.0 Liter Naturally Aspirated
- 2006 GMC Sierra 2500 HD SL 6.0 Liter Naturally Aspirated
- 2001-2019 GMC Sierra 2500 HD SLE 6.0 Liter Naturally Aspirated
- 2001-2019 GMC Sierra 2500 HD SLT 6.0 Liter Naturally Aspirated
- 2003-2014 GMC Sierra 2500 HD WT 6.0 Liter Naturally Aspirated
- 2007 GMC Sierra 2500 HD Classic SL 6.0 Liter Naturally Aspirated
- 2007 GMC Sierra 2500 HD Classic SLE 6.0 Liter Naturally Aspirated
- 2007 GMC Sierra 2500 HD Classic SLT 6.0 Liter Naturally Aspirated
- 2007 GMC Sierra 2500 HD Classic WT 6.0 Liter Naturally Aspirated
- 2002-2005 GMC Sierra 3500 Base 6.0 Liter Naturally Aspirated
- 2001-2002 GMC Sierra 3500 SL 6.0 Liter Naturally Aspirated
- 2006 GMC Sierra 3500 SL 6.0 Liter Naturally Aspirated
- 2001-2006 GMC Sierra 3500 SLE 6.0 Liter Naturally Aspirated
- 2001-2006 GMC Sierra 3500 SLT 6.0 Liter Naturally Aspirated
- 2004-2006 GMC Sierra 3500 WT 6.0 Liter Naturally Aspirated
- 2007 GMC Sierra 3500 Classic SL 6.0 Liter Naturally Aspirated
- 2007 GMC Sierra 3500 Classic SLE 6.0 Liter Naturally Aspirated
- 2007 GMC Sierra 3500 Classic SLT 6.0 Liter Naturally Aspirated
- 2007 GMC Sierra 3500 Classic WT 6.0 Liter Naturally Aspirated
- 2015-2019 GMC Sierra 3500 HD Base 6.0 Liter Naturally Aspirated
- 2011-2019 GMC Sierra 3500 HD Denali 6.0 Liter Naturally Aspirated
- 2007-2019 GMC Sierra 3500 HD SLE 6.0 Liter Naturally Aspirated
- 2007-2019 GMC Sierra 3500 HD SLT 6.0 Liter Naturally Aspirated
- 2007-2014 GMC Sierra 3500 HD WT 6.0 Liter Naturally Aspirated
- 2001-2006 GMC Yukon Denali 6.0 Liter Naturally Aspirated
- 2010-2013 GMC Yukon Denali Hybrid 6.0 Liter Naturally Aspirated
- 2008-2013 GMC Yukon Hybrid 6.0 Liter Naturally Aspirated
- 2001-2006 GMC Yukon XL 1500 Denali 6.0 Liter Naturally Aspirated
- 2007-2009 GMC Yukon XL 1500 SLE 6.0 Liter Naturally Aspirated
- 2007-2009 GMC Yukon XL 1500 SLT 6.0 Liter Naturally Aspirated
- 2000-2013 GMC Yukon XL 2500 SLE 6.0 Liter Naturally Aspirated
- 2000-2013 GMC Yukon XL 2500 SLT 6.0 Liter Naturally Aspirated
- 2003-2007 Hummer H2 Base 6.0 Liter Naturally Aspirated
- 2008-2009 Pontiac G8 GT 6.0 Liter Naturally Aspirated
- 2005-2006 Pontiac GTO Base 6.0 Liter Naturally Aspirated
- 2008-2009 Saab 9-7x Aero 6.0 Liter Naturally Aspirated
